TCPWave DDI Reporting At Your Fingertips: Empowering Network Teams

Harness the most sophisticated framework to drive compliance and efficiency


Drive operational excellence in the digital era.

The TCPWave DDI Reporting Framework, an integral part of the core DDI product, does not require an additional license and stands as one of the most sophisticated frameworks available in the present DDI market. It produces comprehensive network reports that are utilized by cutting-edge network teams today. This framework enables network teams to conduct thorough investigations into events, identify anomalies, gather audit data, and effortlessly share informative dashboards with the entire organization. Network administrators can acquire valuable insights on a range of key performance indicators (KPIs), including network space utilization and DHCP appliance utilization. In this white paper, we delve into the Address Space Reports, specifically focusing on the IPv4 Reports, to provide valuable insights and knowledge..

Comprehensive Address Space Analysis

  • The reporting framework analyzes IPv4 address space, providing insights for network administrators to identify conflicts, optimize allocation, and plan for future growth.

Real-time Monitoring and Alerting

  • The reporting framework enables real-time monitoring and proactive management of IPv4 address space to address issues and prevent address exhaustion.

Anomaly Detection and Troubleshooting

  • The framework identifies irregular address utilization, unauthorized IP assignments, and excessive address consumption for prompt security resolution."
IPv4 Insight Suite

TCPWave's DDI product seamlessly incorporates the IPv4 Address Space Reporting Framework, empowering network administrators and teams with extensive insights to effectively manage, allocate, and utilize IPv4 addresses within their organization's network infrastructure. By leveraging this integrated framework, professionals can make informed decisions, optimize resource allocation, and proactively mitigate potential risks, ensuring a robust and efficient network environment.

Optimizing IPv4 Utilization

The IPv4 address space, serving as the bedrock of the Internet, is vital for seamless connectivity across devices and networks. In the face of evolving network management challenges, organizations need a reliable reporting framework that goes beyond surface-level understanding. TCPWave's IPv4 Address Space Reporting Framework offers a comprehensive solution, empowering organizations with deep insights into IPv4 address space utilization. By harnessing the power of this robust framework, network administrators can optimize address allocation, proactively manage resources, and ensure efficient network operations.

Address Space Optimization

The IPv4 Address Space Reporting Framework seamlessly integrates with auditing and compliance mechanisms. It enables network teams to generate audit reports, demonstrating adherence to regulatory requirements, and ensuring compliance with industry standards. By maintaining a historical record of IP address assignments and changes, the reporting framework facilitates trend analysis. This allows network administrators to identify patterns, forecast future address requirements, and optimize address space utilization, thereby minimizing wastage and improving operational efficiency.

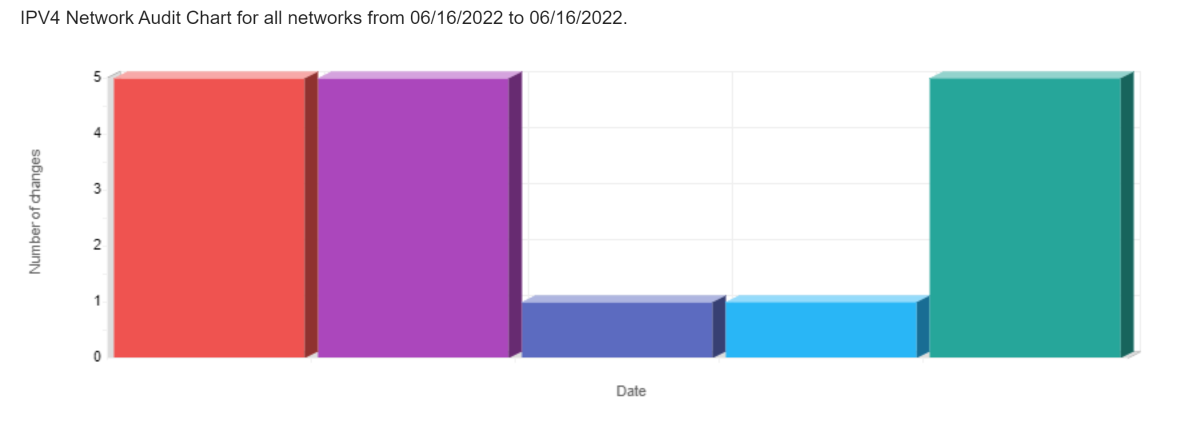

IPv4 Network Audit

Conducting an IPv4 Network Audit is crucial for network security, compliance adherence, troubleshooting, accountability, and capacity planning. It offers a comprehensive log of network activities, serving multiple purposes. This audit ensures accountability by tracking administrator actions, detecting errors, and preventing malicious behavior. It also aids in network capacity planning by analyzing usage patterns and identifying areas that require optimization or upgrading. Moreover, it assists in meeting compliance requirements as many regulatory bodies mandate a thorough record of network operations. Additionally, the audit report facilitates issue resolution by pinpointing the root cause, providing detailed information on network changes and their respective timing, enabling effective troubleshooting.

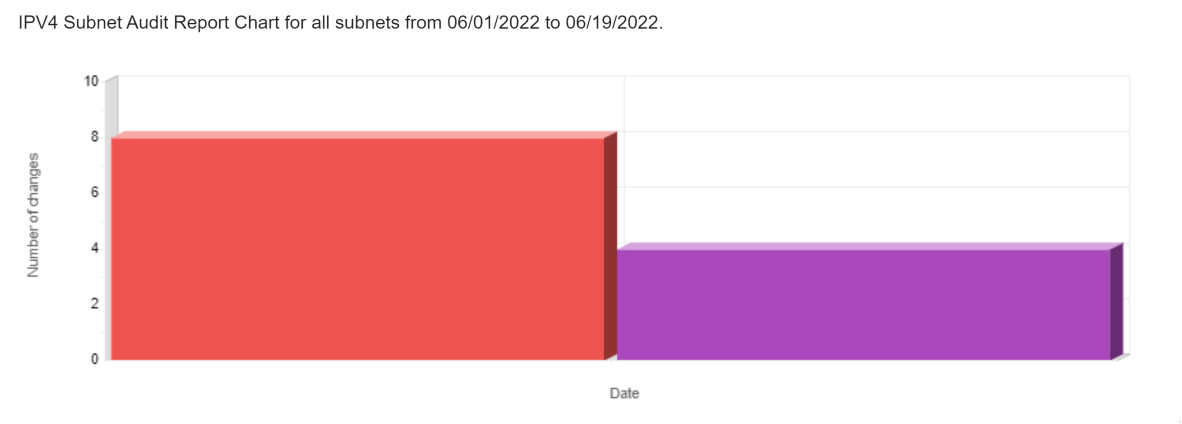

IPv4 Subnet Audit By Address

The IPv4 Subnet Audit By Address report is vital for subnet security, compliance adherence, troubleshooting, accountability, and capacity planning. It offers a comprehensive log of all subnet activities, serving various purposes. Regulatory bodies often mandate organizations to maintain such records for audits. When subnet issues arise, the audit report aids in pinpointing the cause by detailing the who, what, and when of subnet changes, facilitating effective troubleshooting. Maintaining accountability, the report detects administrator errors and prevents malicious activities. Additionally, it reveals subnet usage patterns, enabling organizations to optimize or upgrade specific areas based on analysis of the audit report.

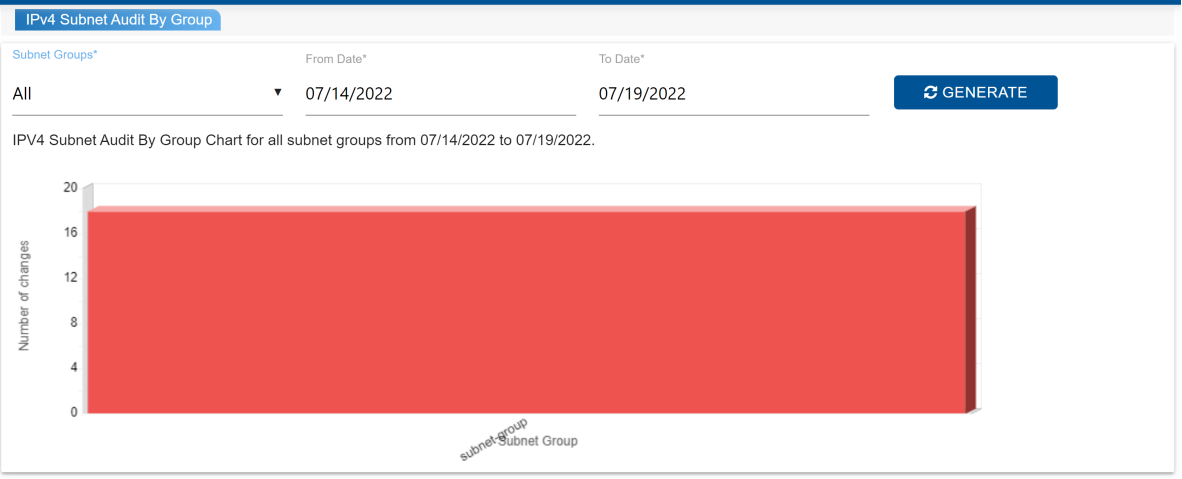

IPv4 Subnet Audit By Group
Image 3

The IPv4 Subnet Audit By Group report is crucial for maintaining subnet group security and integrity, meeting compliance requirements, troubleshooting, ensuring accountability, and planning capacity. It serves as a comprehensive record of all subnet group operations, serving various purposes. Compliance regulations often mandate organizations to maintain such records for auditing. When issues arise, the audit report pinpoints the cause by detailing changes made, who made them, and when. This aids troubleshooting and resolution. Additionally, tracking subnet group operations fosters accountability, exposing errors and preventing malicious activities. Furthermore, the report reveals subnet group usage patterns, aiding capacity planning by identifying areas that require optimization or upgrading.

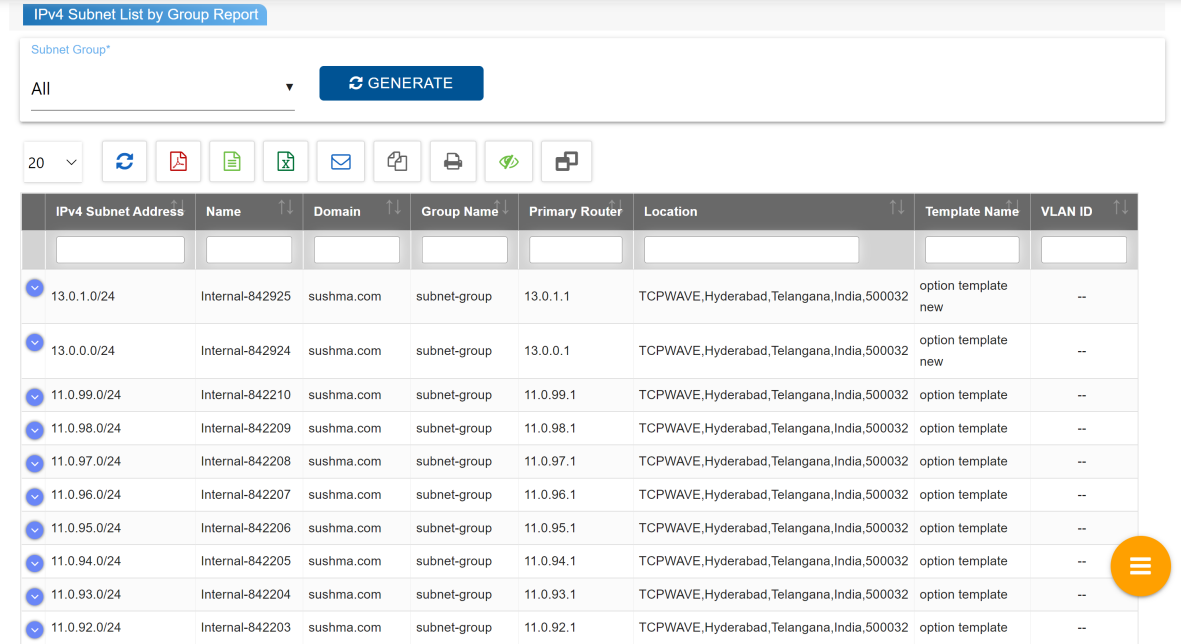

IPv4 Subnet List By Group
Image 4

The IPv4 Subnet List by Group report is crucial for subnet management, planning, troubleshooting, compliance, and accountability. It offers a comprehensive list of subnets within a subnet group or all groups, serving diverse purposes. This report facilitates network administrators in efficiently overseeing and controlling subnets by providing a consolidated list. It aids in planning by revealing subnet usage patterns and capacity assessment. Troubleshooting becomes easier as the report presents a comprehensive list of subnets, enabling prompt resolution of issues. Furthermore, it supports compliance requirements by documenting all subnets, a vital aspect for regulatory audits. Lastly, the report ensures accountability by detailing subnet changes and their timestamps, discouraging errors and malicious activities.

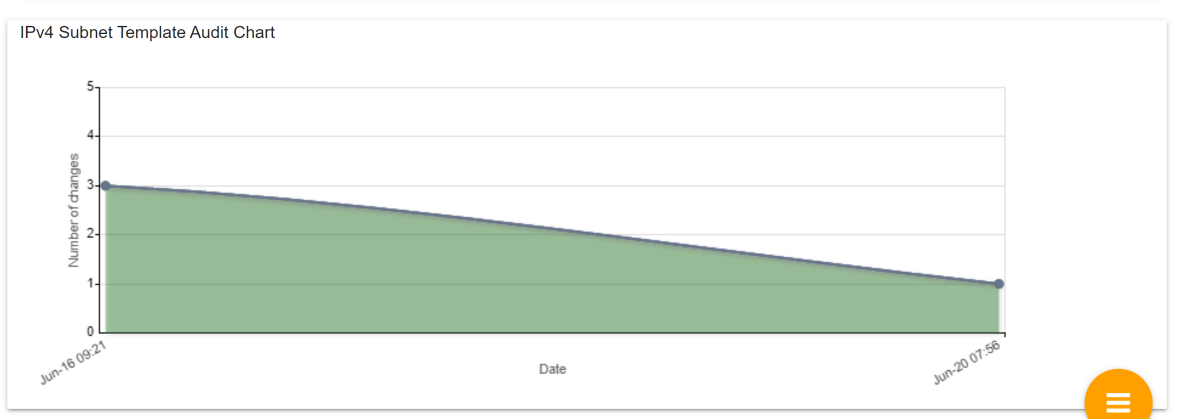

IPv4 Subnet Template Audit
Image 4

Subnet templates are vital for managing subnets, ensuring consistent IP address allocation and minimizing errors. The audit history report tracks template changes, detecting unauthorized modifications that compromise network security. This documented history aids future reference, analysis, and reporting, protecting the network's integrity. Subnet templates streamline IP address management, applying key parameters to multiple subnets. The audit report monitors changes, identifying security breaches. It serves as a resource for maintaining security and compliance. With subnet templates, administrators simplify network administration. The audit report enables detailed reporting and effective communication. It fosters accountability and ensures policy compliance. In summary, subnet templates and the audit report enhance network security and efficiency.

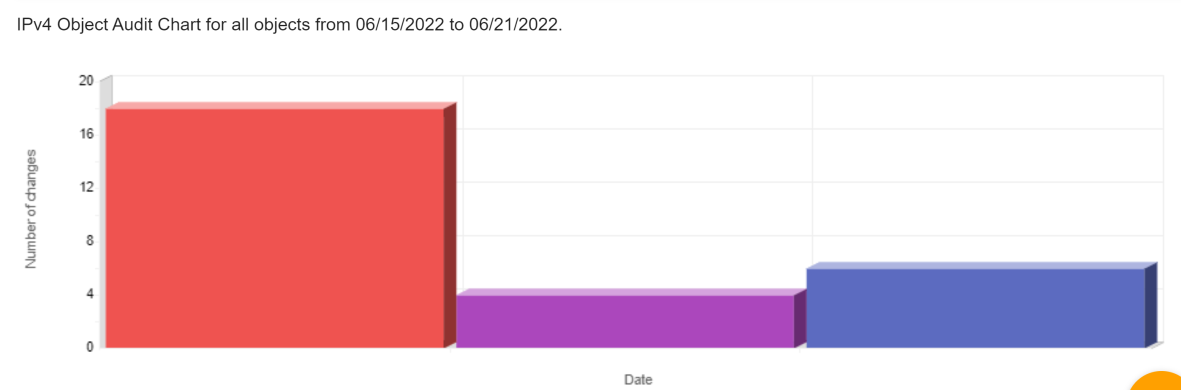

IPv4 Object Audit
Image 4

The IPv4 Object Audit report offers a comprehensive record of actions performed by an administrator on a specific object. In the context of IPv4 addressing, an object can refer to a network or host IP address, name, or IP address range. This report supplies detailed data on object modifications, aiding network administrators in monitoring changes, troubleshooting problems, and upholding network security. It includes information about the individuals responsible for the changes, the nature of the changes, and the timing of the changes. Moreover, the report tracks actions like object addition or removal, property modifications, and status changes, while also granting administrators the ability to specify a desired date range for tracking object changes within that period.

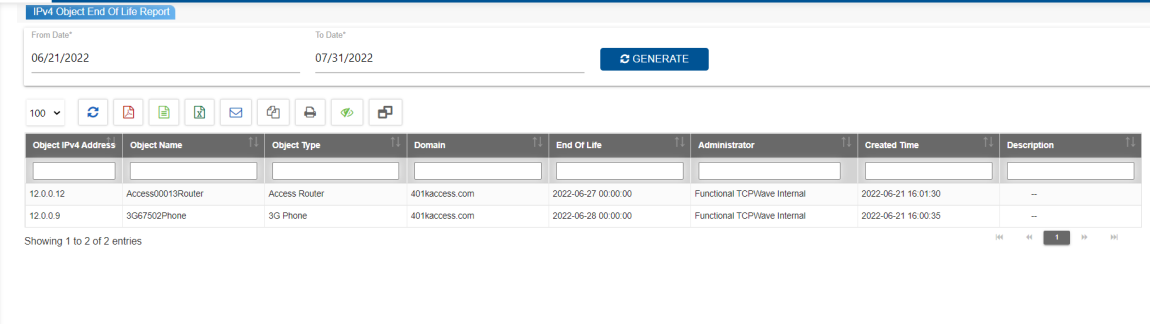

IPv4 Object End Of Life
Image 3

End of Life (EOL) refers to the point when a product or service is no longer supported by its manufacturer, lacking updates, bug fixes, and technical assistance. This leaves users exposed to security vulnerabilities, compatibility issues, and other risks. The TCPWave End of Life Report is a valuable tool for identifying objects nearing the end of their life span, specifically in IP address management. It provides crucial information like object name, type, current status, EOL date, and remaining days until expiration. This report aids network administrators in efficiently managing their resources by taking necessary actions to ensure network availability and integrity. Through renewals, updates, or removals, administrators can prevent security breaches, network downtime, and other risks tied to expired resources.

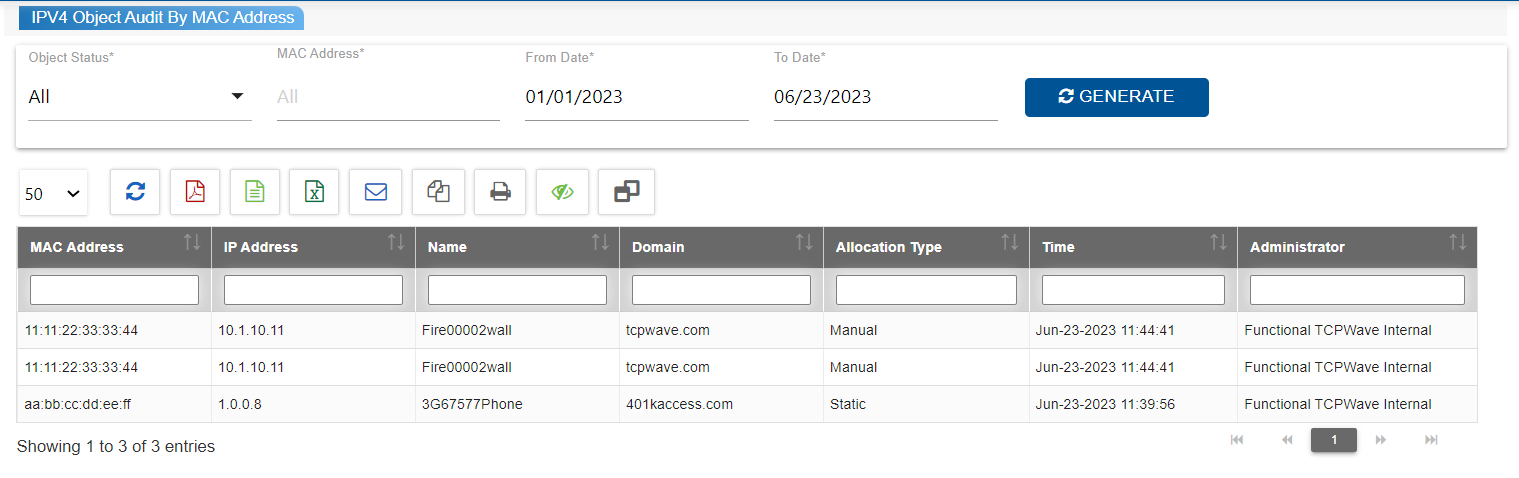

IPv4 Object Audit By MAC Address
Image 3

The IPv4 Object Audit Report by MAC Address is a detailed record of MAC address associations with IPv4 objects, such as hosts or network addresses, for a specified period. It captures all operations related to MAC addresses, including additions, edits, and deletions during the designated timeframe. This report assists administrators in troubleshooting and maintaining network security by tracking changes made to MAC addresses. Additionally, administrators can select specific date ranges to monitor modifications made to MAC addresses associated with objects within that timeframe. Overall, this report offers crucial insights for network management and security purposes, providing a centralized and comprehensive overview of MAC address activities.

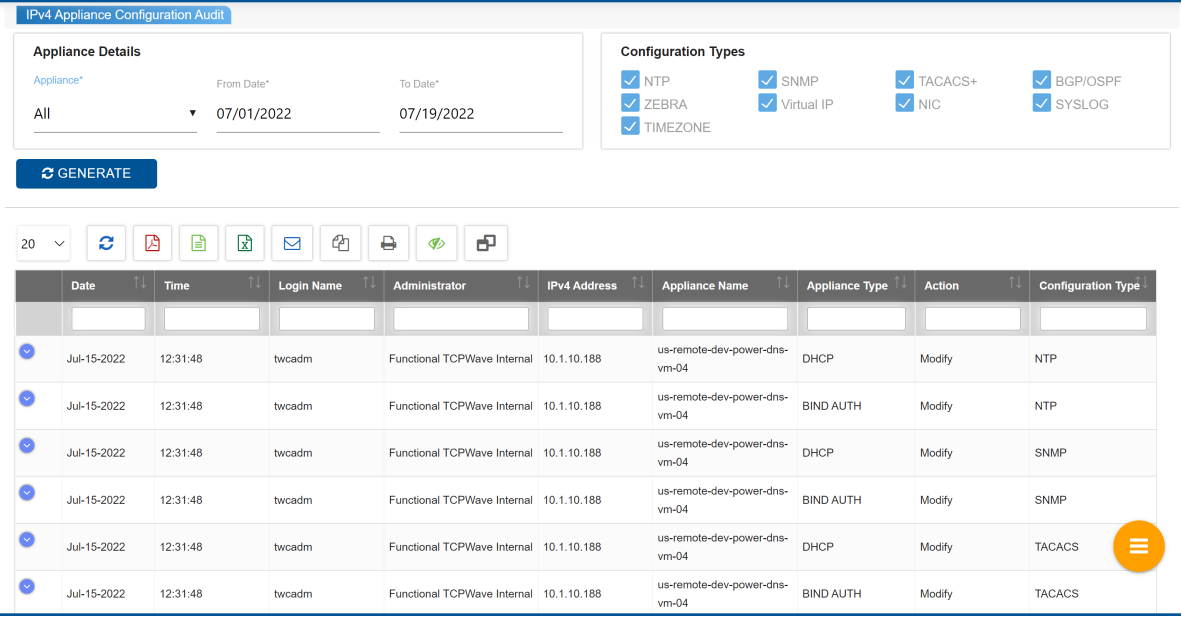

IPv4 Appliance Configuration Audit
Image 4

The IPv4 Appliance Configuration Audit report offers a comprehensive record of configuration changes made to each appliance. It furnishes extensive details on the appliance configuration, aiding in issue troubleshooting and network security maintenance. The report covers essential information like the initiator, nature, and timing of the alterations. It diligently tracks changes involving addition, modification, or removal of configurations for each appliance, assisting administrators in troubleshooting and ensuring network security. Furthermore, administrators have the flexibility to choose a specific date range for monitoring appliance configuration changes within that period.

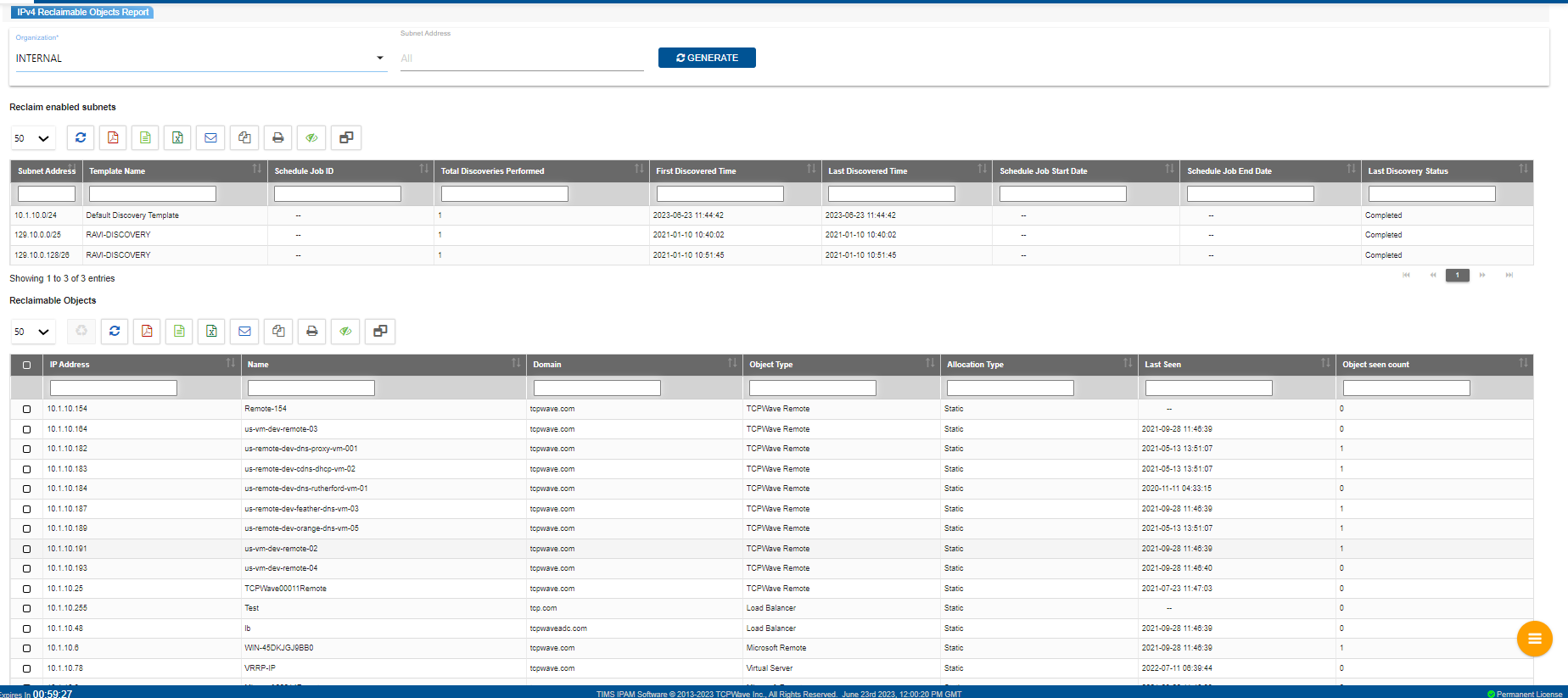

IPv4 Reclaimable Objects Report
Image 4

The IPv4 Reclaimable Objects Report is an analysis of IPv4 subnets, pinpointing any reclaimable objects within them. It aids network administrators in recognizing unused IP addresses, networks, or ranges that can be reclaimed for reuse. The report offers comprehensive details on subnet usage, enabling the identification of unused networks or ranges that can be reclaimed. By identifying and reclaiming unused IP resources, such as addresses, networks, and ranges, administrators can optimize IP utilization and minimize the need for additional address assignments. The audit report includes two grids: one showcasing information about reclaim-enabled subnets and the other displaying details of reclaimable objects.

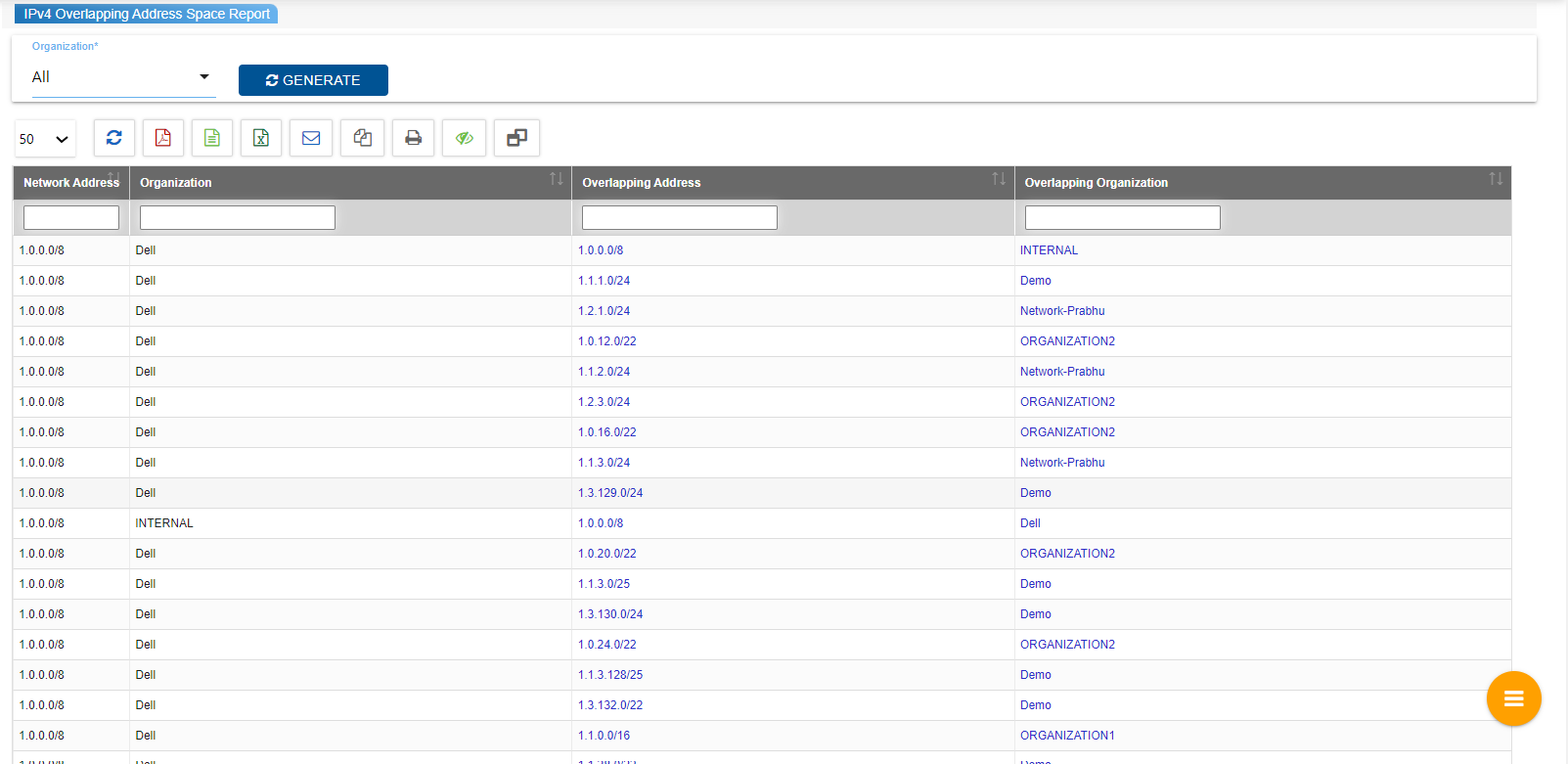

IPv4 Overlapping Address Space
Image 4

IPv4 Overlapping Address Space Report help network administrators identify overlapping IP address ranges in different organizations. The report provides a snapshot of the current state of overlapping IP addresses and can help in troubleshooting and preventing connectivity issues. The report contains details of the overlapping IP address spaces in different organizations. The administrator can select the option "ALL" to view details of all the organizations or choose specific organizations from the organization dropdown menu. By doing so, the administrator can identify which organizations are using overlapping IP address ranges and take appropriate actions to resolve the issue. Overlapping Address Space Report is a useful tool for network administrators to identify and address IP address conflicts, which can improve network connectivity and performance.

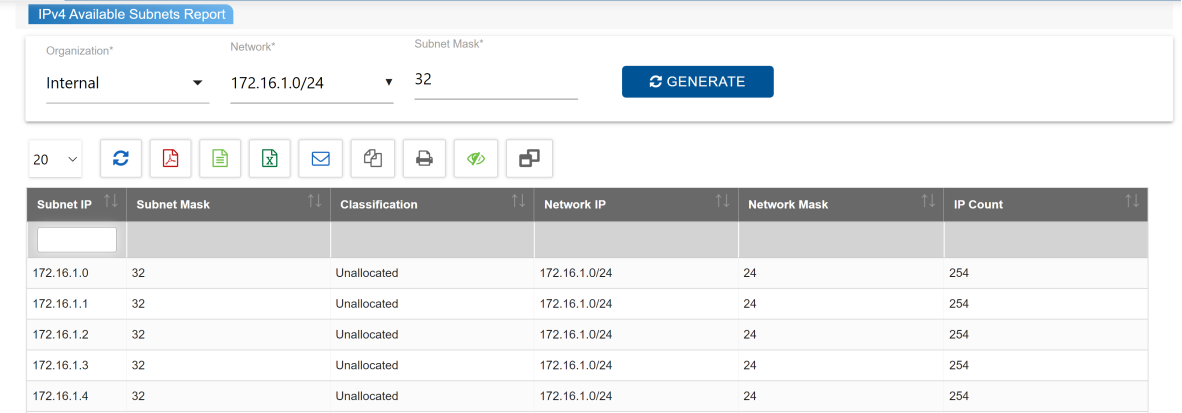

IPv4 Available Subnets
Image 4

IPv4 Available Subnets Report provides a list of available subnets that have not been created in a given network for a particular organization. The report helps the network administrator to create new subnets and analyze network space availability. It shows which IP addresses are available for use and which ones are already in use, allowing the administrator to allocate IP addresses efficiently. The report typically includes information such as the network address, subnet mask, number of hosts per subnet, and the number of subnets available for use. The administrator can use this information to determine the appropriate subnet mask and the number of hosts required for each subnet. IPv4 Available Subnets Report is a useful tool for network administrators to manage IP address allocation efficiently, ensuring that all devices on the network have a unique IP address and reducing the risk of IP address conflicts.

TCPWave's IPv4 Address Space Reporting Framework empowers organizations with comprehensive insights into their IPv4 address space utilization. By leveraging this powerful tool, network administrators can optimize address allocation, proactively manage resources, and ensure efficient network management. With real-time monitoring, anomaly detection, trend analysis, and compliance integration, this reporting framework plays a crucial role in driving operational excellence and maintaining a robust network infrastructure in the dynamic digital landscape.
