1. INTRODUCTION

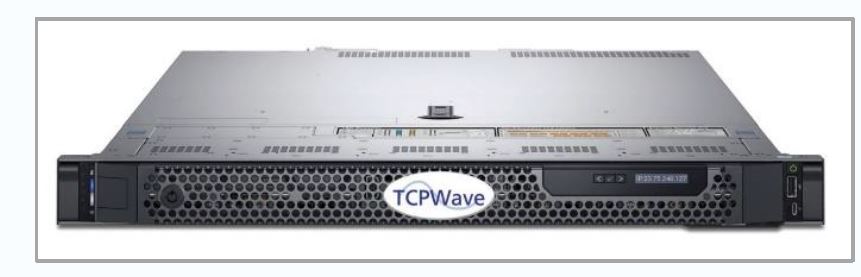

tw240 The TCPWave TW240 appliance is a small, affordable, yet powerful DDI hardened appliance ideal for remote DNS/DHCP operations. The TW240 hardened server is based on the rock solid, industry-proven Dell PowerEdge R240. Together, TCPWave and Dell specify, validate, and deliver a platform consisting of TCPWave secure software that optimally controls and future proofs your DDI environment.

The TW240 is available in the Remote configuration which provides the secure communication layer along with DNS/DHCP and other network services (NTP, SNMP, resiliency) that are tailored to provide non-stop DNS/DHCP functionality. An IPAM appliance must also be included to provide the IP Address Management functionality. The IPAM appliance can be a high-end TW740, mid-range TW440 or a software appliance based on VM running on-prem or in the Cloud.

FEATURES
  • TCPWave is the single source for both hardware and software
  • Simplified "rack and stack" installation and turn-up of DNS/DHCP services
  • Intel® Xeon® multi-core and multi- threading enables simultaneous processing within appliance
  • Green technology saves power during idle states
  • Advanced "Lights Out" management allows administrators to quickly interact with appliance and diagnose any potential hardware issues
  • Hardware built and sourced in-country by Dell to minimize shipping delays and issues involving customs
  • Hardware repair and replacement by dedicated Dell technicians minimizes downtime
TW240 Technical Specifications
Feature TW240 Technical Specifications
Form Factor 1U Rack-Mountable "Pizza Box" server
Processor Intel Xeon E-2124, 3.3GHz, 8M Cache, Turbo, 71W, 4 Cores (4 Threads)
Software TW240 platform includes security-hardened 64-bit Linux (based on RHEL7). TCPWave Remote DNS/DHCP software
Memory 8 GB (2666MT/s DDR4 UDIMM)
Storage 1 x 480GB Hot-Plug Hard Disk
Performance DNS: 75,000 queries per second (qps). DHCP: 500 leases per second (lps)
Power Supply 1 x 250W Cabled Power Supply
Environmental Specifications Continuous operations: 10°C to 35°C (50°F to 95°F) at 10% to 80% RH with 29°C (84.2°F) dew point. Expanded operations: 5°C to 40°C (40°F to 104°F) at 5% to 85% RH with 29°C (84.2°F) dew point
Voltage Voltage: 100-240 VAC, auto-ranging, 50/60 Hz (1.4 amps).
Thermal Load Input Power: 151 watts, 515.2 btu/h; Max Potential Power: 196.4 watts, 670.1 btu/h.
Lights Out Management Dell iDRAC9 Enterprise Lights Out Management remote management
Network Connections 4 Gigabit Ethernet NICs
External I/O Ports 1 USB 2.0 (Front), 2 USB 3.0 (Back), 1 USB 3.0 (Internal), 1 iDRAC9 NIC (Back), 1 VGA Serial Display Port (Back)
Mounting Hardware Included
Dimensions Height: 42.8 mm (1.68 in), Width: 482.0 mm (18.97 in) with rack latches, Depth: 609.2 mm (23.98 in) including bezel and power supply.
Weight 12.2Kg (29.98 lb)
Hardware Service/Repair 3 Years of 7x24 On-Site Service (Worldwide) 10 Advisory Board
