Introduction

The TCPWave’s DDI Reporting Framework is in-built into the core DDI product with no additional license and is one of the most advanced frameworks in the current DDI market. It generates the widespread network reports used by today’s most advanced network teams. The network teams can now do a detailed investigation of events, identify anomalies, collect audit data, and share the dashboards with the organizations at large. The network administrators can gather actionable insights on various KPIs such as network space utilization and DHCP appliance utilization. This white paper provides insights on the Address Space Reports – IPv4 Reports.

Address Space Reports

The address space reports are grouped as:

IPv4 Reports section is grouped as:

Report Name

IPv4 Network Audit

Description

It provides complete audit information regarding operations performed on a specific network by an administrator. It includes the network details, the type of action performed on it, the name of the administrator who performed the action, and the time of the action performed. An administrator with appropriate privileges can generate the report. The IPAM retrieves and displays the network audit details from a user’s specified time.

Grid Data

  • Date
  • Time
  • Login Name
  • Network Name
  • IPv4 Network Address
  • Action
  • Status
  • Created On
  • Deleted On
  • Message
  • Description

Bar Chart Data

  • On X-axis - Date on which the action is performed.
  • On Y-axis - Number of changes performed by an administrator.

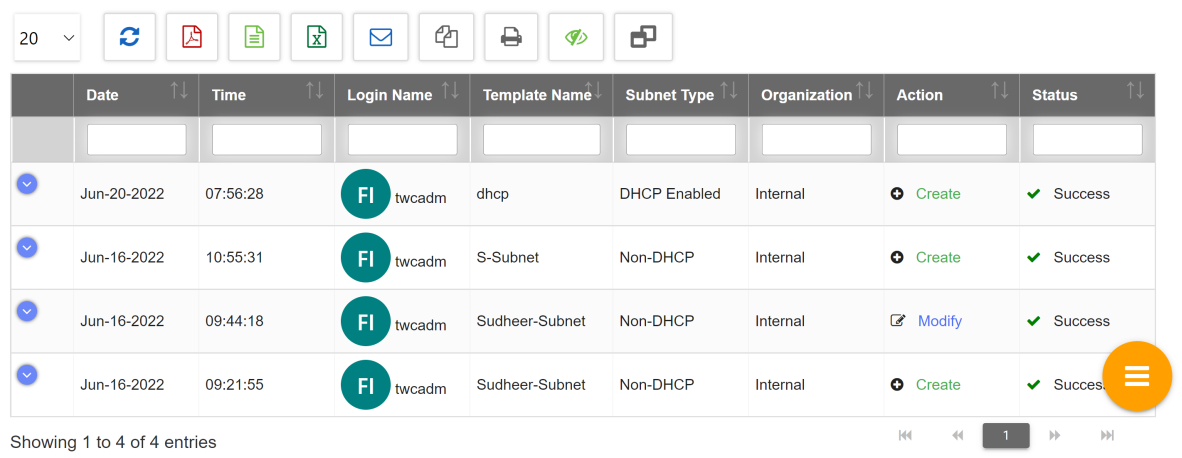

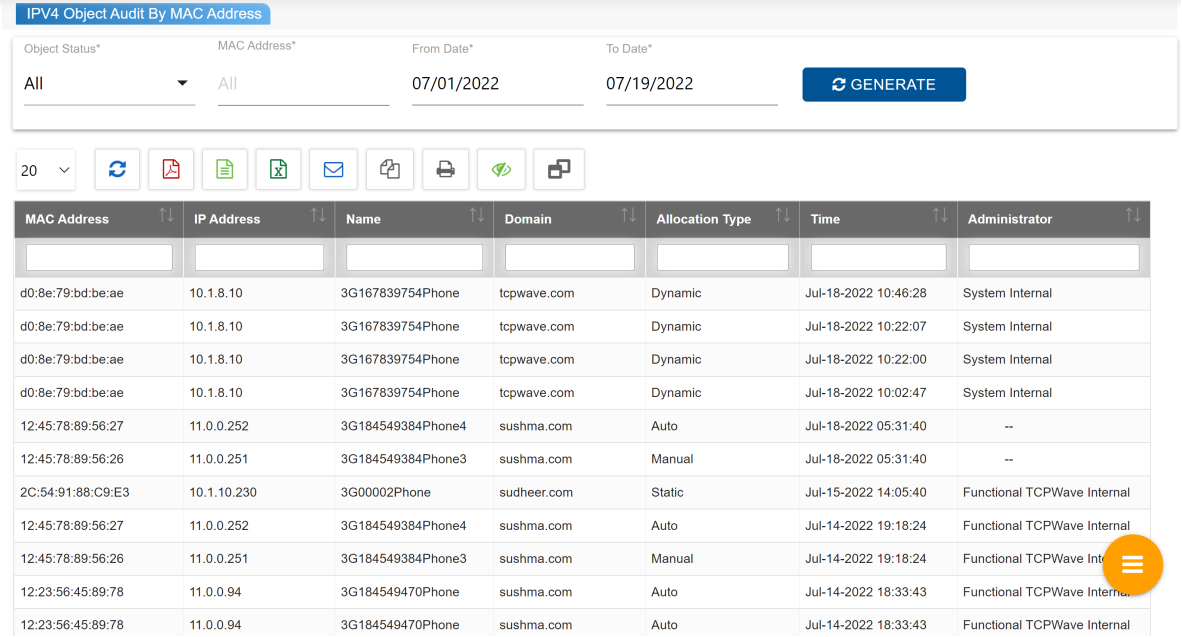

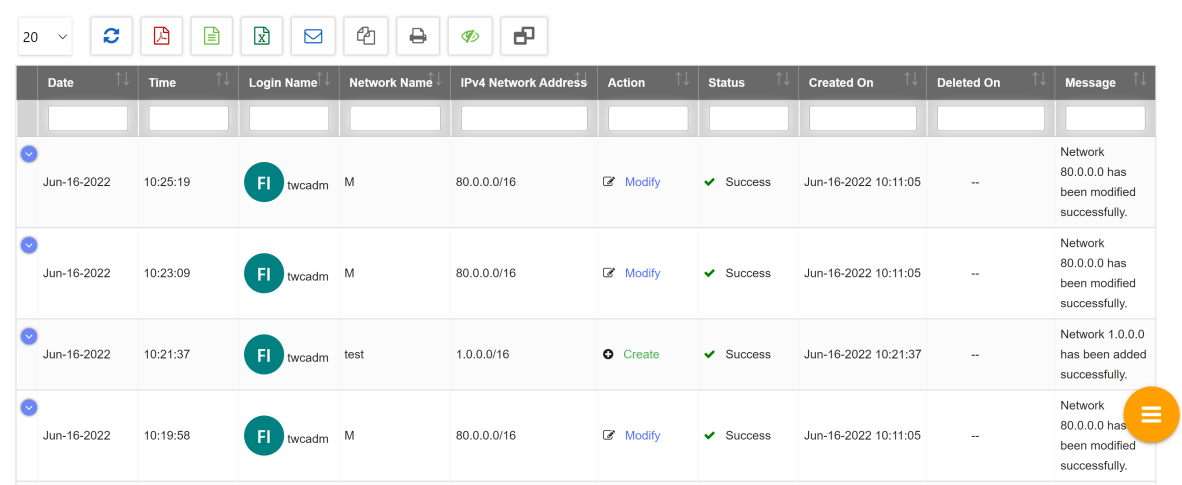

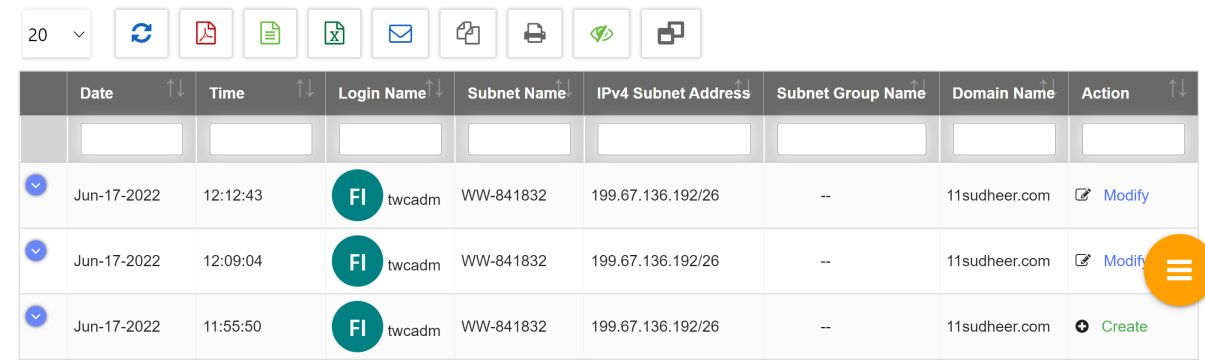

Sample Report









Report Name

IPv4 Subnet Audit By Address

Description

It provides complete audit information regarding operations performed on a specific subnet or all the subnets by an administrator based on the subnet address. The audit information includes the subnet details, the type of action performed on it, the name of the administrator who performed the action, and the time of the action performed. An administrator with appropriate privileges can generate the report. The IPAM retrieves and displays the subnet audit information from a specified time provided by the user.

Grid Data

  • Date
  • Time
  • Login Name
  • Subnet Name
  • IPv4 Subnet Address
  • Subnet Group Name
  • Domain Name
  • Action
  • Status
  • Created On

Bar Chart Data

  • On X-axis - Date on which the action is performed.
  • On Y-axis - Number of changes performed by an administrator.

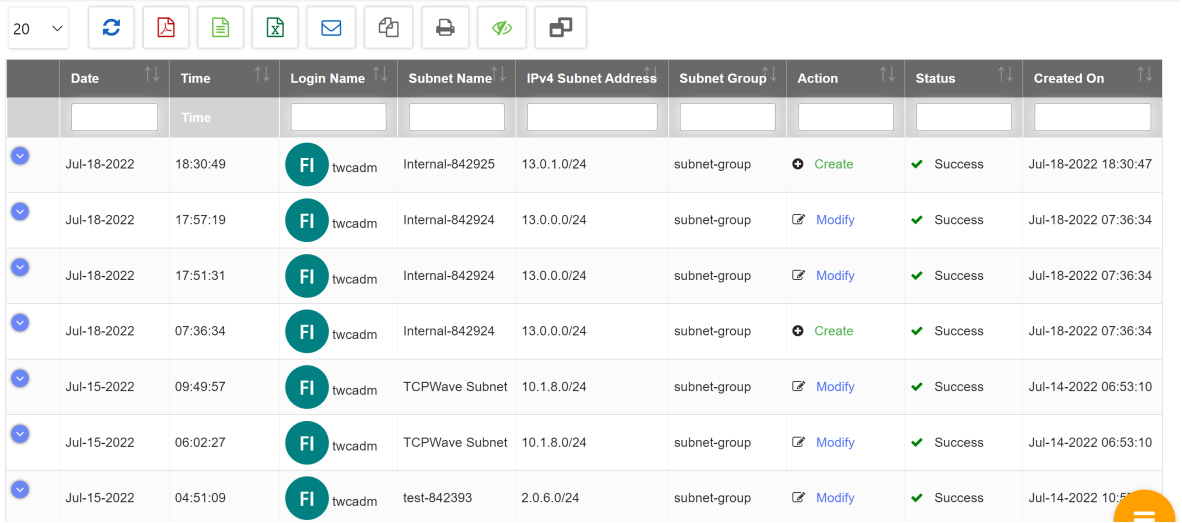

Sample Report









Report Name

IPv4 Subnet Audit By Group

Description

The IPv4 Subnet Audit by Group provides complete audit information regarding operations performed on a specific subnet associated with a subnet Group or all the subnet groups by an administrator. The audit information includes the subnet group details, the type of action performed on it, the name of the administrator who performed the action, and the time of the action performed. An administrator with appropriate privileges can generate the report. The IPAM retrieves and displays the subnet group audit information from a specified time provided by the user.

Grid Data

  • Date
  • Time
  • Login Name
  • Subnet Name
  • IPv4 Subnet Address
  • Subnet Group
  • Action
  • Status
  • Created On
  • Deleted On
  • Message

Bar Chart Data

  • On X-axis - Date on which the action is performed.
  • On Y-axis - Number of changes performed by an administrator.

Sample Report









Report Name

IPv4 Subnet List By Group

Description

It provides complete audit information regarding operations performed on the list of subnets associated with all subnet groups or individual subnet groups.

Grid Data

  • IPv4 Subnet Address
  • Name
  • Domain
  • Group Name
  • Primary Router
  • Location
  • Template Name
  • VLAN ID
  • Description

Sample Report







Report Name

IPv4 Subnet Template Audit

Description

It provides complete audit information regarding operations performed on a specific subnet template or all subnet templates by an administrator.

Grid Data

  • Date
  • Time
  • Login Name
  • Template Name
  • Subnet Type
  • Organization
  • Action
  • Status
  • Created On
  • Deleted On
  • Message

Bar Chart Data

  • On X-axis - Date on which the action is performed.
  • On Y-axis - Number of changes performed by an administrator.

Sample Report















Report Name

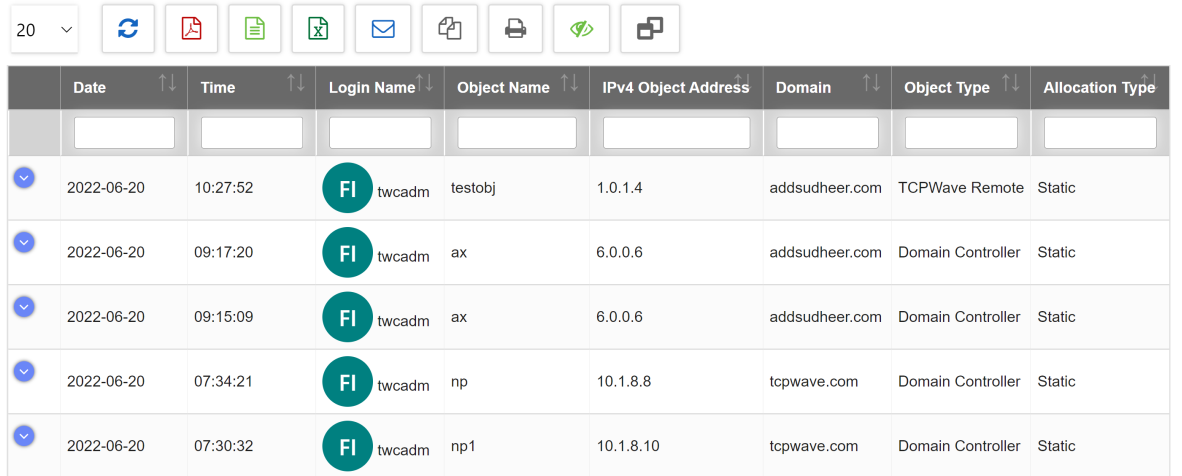

IPv4 Object Audit

Description

It provides complete audit information regarding operations performed on a specific object by an administrator.

Grid Data

  • Date
  • Time
  • Login Name
  • Object Name
  • IPv4 Object Address
  • Domain
  • Object Type
  • Allocation Type
  • Action
  • Status
  • Message

Bar Chart Data

  • On X-axis - Date on which the action is performed.
  • On Y-axis - Number of changes performed by an administrator.

Sample Report











Report Name

IPv4 Object End Of Life

Description

It displays the information about the object’s end-of-life period based on the selected date range.

Grid Data

  • Object IPv4 Address
  • Object Name
  • Object Type
  • Domain
  • End Of Life
  • Administrator
  • Created Time
  • Description

Sample Report







Report Name

IPv4 Object Audit By MAC Address

Description

It provides information about the MAC address that has been associated with the object IP address(es) for the specified period.

Grid Data

  • MAC Address
  • IP Address
  • Name
  • Domain
  • Allocation Type
  • Time
  • Administrator
  • Object Name

Sample Report





Report Name

IPv4 Appliance Configuration Audit

Description

It provides complete audit information regarding appliance configuration for each appliance.

Grid Data

  • Date
  • Time
  • Login Name
  • Administrator
  • IPv4 Address
  • Appliance Name
  • Action
  • Configuration Type
  • Configuration Data

Sample Report







Report Name

IPv4 Reclaimable Objects Report

Description

It provides complete information regarding the subnet reclaim study. It also determines the usage or no usage of the objects within the IPv4 subnets.

Grid Data

  • Subnet Address
  • Template Name
  • Scheduled Job ID
  • Total Discoveries Performed
  • First Discovered Time
  • Last Discovered Time
  • Scheduled Job Start Date
  • Scheduled Job End Date
  • Last Discovery Status
  • IP Address
  • Name
  • Domain
  • Object Type
  • Allocation Type
  • Last Seen
  • Object Seen Count

Sample Report









Report Name

IPv4 Overlapping Address Space

Description

It provides the current snapshot of the overlapping address space report details.

Grid Data

  • Network Address
  • Organization
  • Overlapping Address
  • Overlapping Organization

Sample Report







Report Name

IPv4 Available Subnets

Description

It provides the list of available subnets that are not yet created in the given network for the given organization. This information helps the administrator to create new subnets and to analyze the network space availability.

Grid Data

  • Subnet IP
  • Subnet Mask
  • Classification
  • Network IP
  • Network Mask
  • IP Count

Sample Report

Conclusion

The reporting framework is one of the essential products for any organization. The TCPWave’s comprehensive, robust reporting framework provides teams with data to monitor the IT infrastructure, increase productivity, and aid decision-making. It allows the network administrators to analyze data from all network components, including devices, systems, and applications, assess overall performance, and derive comprehensive troubleshooting solutions. The network administrators have the power to manage the entire DDI suite with the most reliable, secure services and the best real-time views – all from a single pane of glass that serves as a single source of truth. For a quick demo, contact the TCPWave Sales Team.
